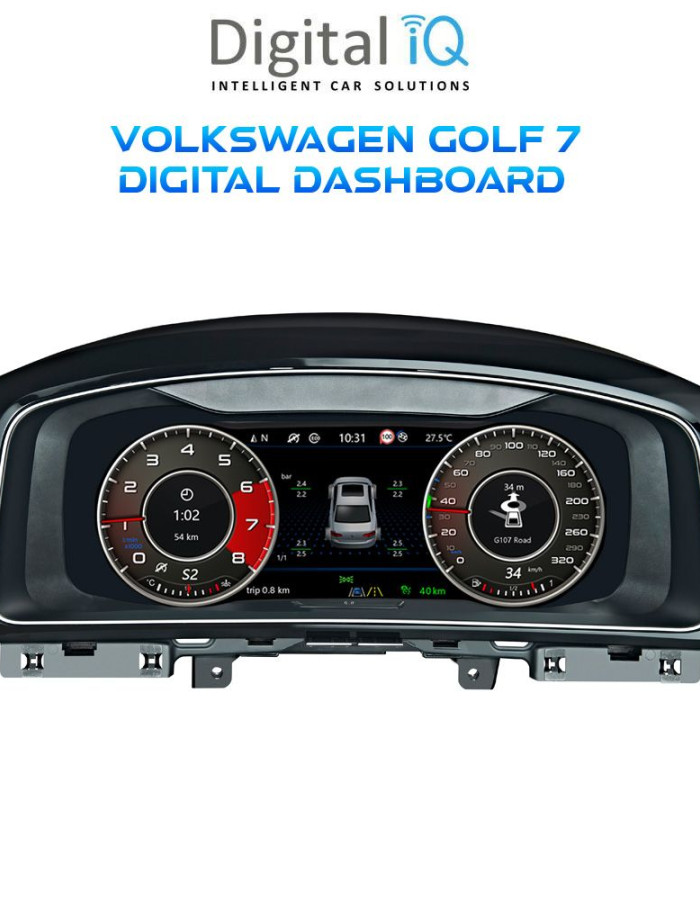

Digital Instruments Cluster (Dashboard) Original Analog Instrument Cluster Upgrade

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/2"][vc_custom_heading text="Features" font_container="tag:h4|text_align:left"][vc_column_text spacing_heading="" spacing_heading_tab="" spacing_heading_mobile=""]

• Intelligent control: Intelligent monitor can show your car informations in real time.
• Customization: Easily and widelly customizable.
• Eight view mode: intelligent control of the whole car. 1. Classic mode, 2.Exercise mode, 3.Digital mode, 4.Gear and speed mode, 5.Consumption and mileage, 6.Economic mode, 7.Driving assistance mode, 8.Navigation mode.
• 12.5inch Screen 1920x720 HD IPS screen with 60fps.
• Linux Operating system.
• Supporst Mobile phone wireless projection screen.
• Supports original car’s Bluetooth phone call or music play.
• &
• WIFI remote upgrade.
• Easy Installation.

[/vc_column_text][/vc_column][vc_column width="1/2"][vc_custom_heading text="Specifications" font_container="tag:h4|text_align:left"][vc_column_text]

• CPU: RENESAS Car gauge chip ---R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature - 40 ° C ~ + 105 ° C.
• GPU is imaging's powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s.
• Dual LVDS output or RGB output, support resolution 1920* 720@60fps.
• Three CVBS inputs.
• HDMI input or LVDS input 1920* 720@60fps.
• Supports 2-way SD card interface.
• 2-way USB 2.0 interface.
• Audio in / out.
• 2-way can.
• 4-way serial port, 2-way I2C, 2-way SPI
• Length: 454mm.
• Width: 234mm
• Height: 230mm.
• Weight: 2kg

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image source="external_link" alignment="center" css_animation="fadeIn" custom_src="https://digitaliq.gr/wp-content/uploads/2023/06/VW_Digital_Dashboard-7.jpg"][vc_row_inner][vc_column_inner][vc_single_image source="external_link" alignment="center" css_animation="fadeInUp" custom_src="https://digitaliq.gr/wp-content/uploads/2023/06/features.jpg"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row equal_height="yes" content_placement="middle"][vc_column width="1/2"][vc_single_image source="external_link" css_animation="fadeInLeft" custom_src="https://digitaliq.gr/wp-content/uploads/2023/06/VW_Digital_Dashboard-1.jpg"][/vc_column][vc_column width="1/2"][vc_single_image source="external_link" css_animation="fadeInRight" custom_src="https://digitaliq.gr/wp-content/uploads/2023/06/VW_Digital_Dashboard-2.jpg"][/vc_column][/vc_row][vc_row][vc_column][vc_single_image source="external_link" alignment="center" css_animation="fadeIn" custom_src="https://digitaliq.gr/wp-content/uploads/2023/06/VW_Digital_Dashboard-8.jpg"][/vc_column][/vc_row][vc_row equal_height="yes" content_placement="middle"][vc_column width="1/2"][vc_single_image source="external_link" css_animation="fadeIn" custom_src="https://digitaliq.gr/wp-content/uploads/2023/06/VW_Digital_Dashboard-04.jpg"][/vc_column][vc_column width="1/2"][vc_single_image source="external_link" css_animation="fadeIn" custom_src="https://digitaliq.gr/wp-content/uploads/2023/06/VW_Digital_Dashboard-06.jpg"][/vc_column][/vc_row][vc_row equal_height="yes" content_placement="middle"][vc_column][vc_single_image source="external_link" css_animation="fadeIn" custom_src="https://digitaliq.gr/wp-content/uploads/2023/06/VW_Digital_Dashboard-05.jpg"][/vc_column][/vc_row][vc_row content_placement="middle" margin_top="40"][vc_column align="center"][vc_row_inner][vc_column_inner align="right" width="1/4" padding_top="20px"][vc_single_image source="external_link" external_img_size="100x100" alignment="center" css_animation="zoomIn" custom_src="https://digitaliq.gr/wp-content/uploads/2018/10/11_warranty_icon.jpg"][/vc_column_inner][vc_column_inner width="3/4"][vc_custom_heading text="ΕΓΓΥΗΣΗ ΕΛΛΗΝΙΚΗΣ ΑΝΤΙΠΡΟΣΩΠΕΙΑΣ 12+12 ΜΗΝΩΝ" font_container="tag:h5|text_align:left" custom_heading_font_weight="600"][vc_column_text]12+12 μήνες εγγύηση Ελληνικής αντιπροσωπείας εφόσον η τοποθέτηση γίνει σε εξειδικευμένο συνεργείο.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner][vc_custom_heading text="Αναζητήστε τα προϊόντα με την γνήσια κάρτα εγγύησης!" font_container="tag:h5|text_align:center|color:%23dd5a5a"][vc_single_image source="external_link" external_img_size="1200x386" alignment="center" css_animation="fadeInUp" custom_src="https://digitaliq.gr/wp-content/uploads/2025/03/diq_warranty_cards_n.jpg"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]
