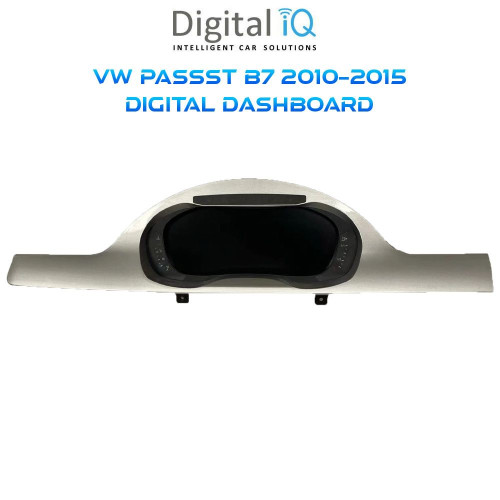

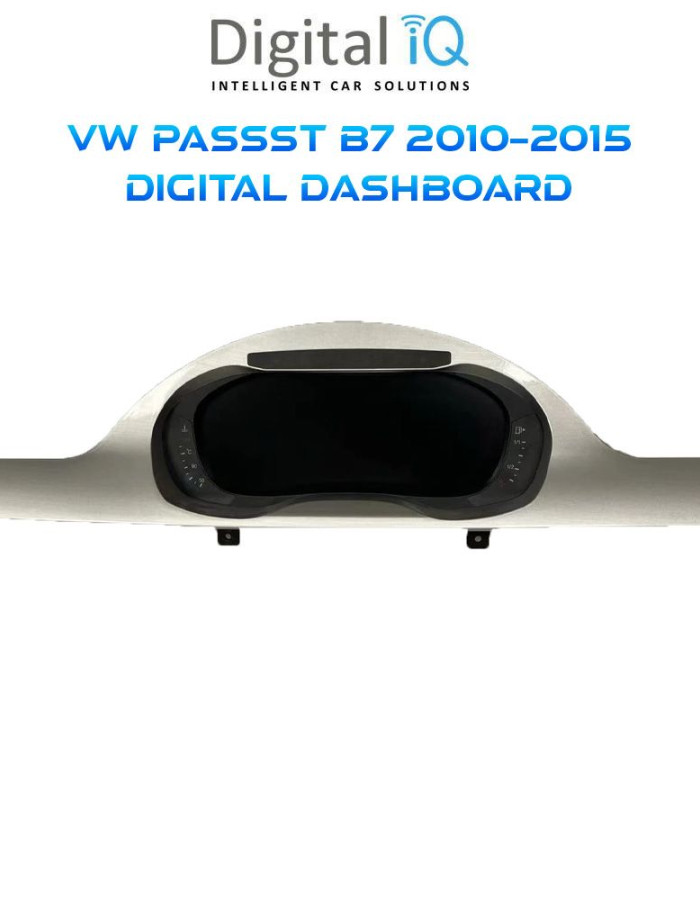

Digital Instruments Cluster (Dashboard) Original Analog Instrument Cluster Upgrade

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/2"][vc_custom_heading text="Features" font_container="tag:h4|text_align:left"][vc_column_text]

• Intelligent control: Intelligent monitor can show your car informations in real time.
• Customization: Easily and widelly customizable.
• Eight view mode: intelligent control of the whole car. 1. Classic mode, 2.Exercise mode, 3.Digital mode, 4.Gear and speed mode, 5.Consumption and mileage, 6.Economic mode, 7.Driving assistance mode, 8.Navigation mode.
• 10.25inch Screen 1920x720 HD IPS screen with 60fps.
• Linux Operating system.
• Supporst Mobile phone wireless projection screen.
• Supports original car’s Bluetooth phone call or music play.
• &
• WIFI remote upgrade.
• Easy Installation.

[/vc_column_text][/vc_column][vc_column width="1/2"][vc_custom_heading text="Specifications" font_container="tag:h4|text_align:left"][vc_column_text]

• CPU: RENESAS Car gauge chip ---R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature - 40 ° C ~ + 105 ° C.
• GPU is imaging's powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s.
• Dual LVDS output or RGB output, support resolution 1920* 720@60fps.
• Three CVBS inputs.
• HDMI input or LVDS input 1920* 720@60fps.
• Supports 2-way SD card interface.
• 2-way USB 2.0 interface.
• Audio in / out.
• 2-way can.
• 4-way serial port, 2-way I2C, 2-way SPI
• Length: 454mm.
• Width: 234mm
• Height: 230mm.
• Weight: 2kg
